Monday, August 11, 2008

Meet Tamiya and Kyosho

Well, in a minute anyway. First we visited the Nottingham Transport Heritage Centre on Sunday, where there was a model railway exhibition. The below 009 layout called Tan y Banc was the only narrow gauge interest and was a lovely little affair. The centre is standard gauge and so doesn't get a review, although the train trip was surprisingly long and pleasant.

There was also a miniature railway that we had a very enjoyable ride on.

Anyway, I am pleased to report that all wiring (bar lighting and signals) is now complete, including point motors and board joins. DCC power is now available to the whole layout, including hidden sidings. The only wiring that needs now completing is that on the hidden sidings. Given I have yet to lay the track here that is probably unsurprising to regular Rhyd Ddu blog visitors!

So who or what are Tamiya and Kyosho - take a look here - http://listings.maplin.co.uk/Free_UK_Delivery/Tamiya_Race_Pack_Connector_11455_v2.htm

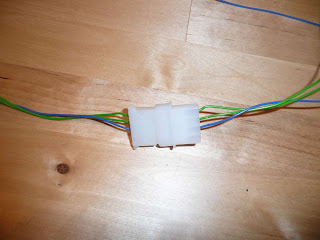

Below is an example of the pair (also used as hard disc cable connectors) I have used to carry the three connections for the point motors back to the DCC accessory decoder.

These are super little connectors, easy to use (I soldered the wires to the crimp just to be sure) and are pretty cheap too - certainly much easier to use than serial connectors!

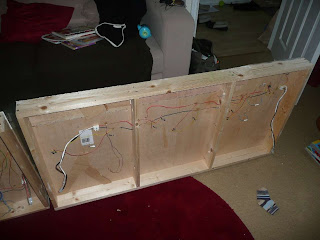

Below is the Ffridd Isaf board...

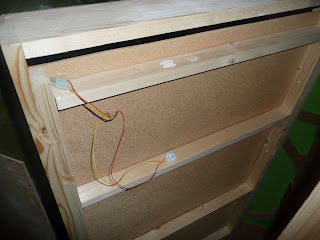

Below is the first board after Ffridd Isaf with the loop point on....

Next is the main station board...



Then the board with all the action - the yard points and DCC accessory decoder...


Then board 1 - the square board

and finally the hidden sidings showing the choc blocks installed...

I also had time to think about the track plan for the top level of Nant Gwernol and to temporarily fix down 2 extra points...

Colin
