Monday, September 27, 2010

Bugs populated

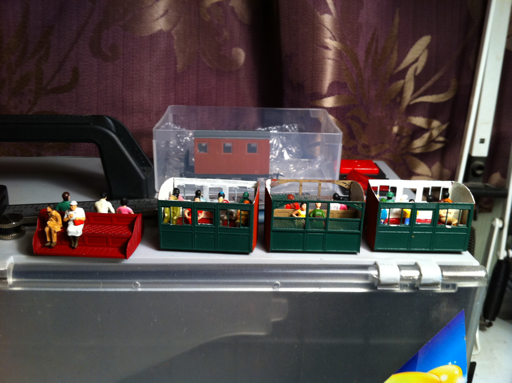

People added to the bugs. Also behind is FR van 6 bought at Walton. It just needs painting green and then is ready to go as it's glazed and sports nice couplings.



Friday, September 24, 2010

Blame it on a rush of blood to the head

Well I said I wasn't going to touch 143's boiler details. Well that lasted one day before I decided to alter them. Frankly with the lovely NG143 plates coming I felt it would be disingenuous to add them to a loco that bore only a passing resemblance to the real thing.

The parts have been moved to their correct positions and once they have set I will add replacement piping. Washout plugs have been added and even a crew added.

Other areas that have been worked on have included the headlights and a mix of gunmetal/black for the smokebox.




Thursday, September 23, 2010

Where we’re at:

K1 is receiving much attention in the southern workshops.  I built it up to a stage where I felt Dad would be far better at finishing off the valve gear and fiddly bits.  She should be ready for expoNG, but perhaps only in the base matt black she ran in for a while:

K1 valve gear 001 K1 valve gear 002

Dad has also painted the buffet car, which is really coming together, when married to the interior I built.

 K1 valve gear 004

I’ve been experimenting with greys and blacks to find the right roof colours:

P1100062

and fabricating endless sets of handrails for the saloons… I am 3 short as I lent too much nickel silver wire to Dad!

P1100057

I’ve also continued detailing 87 with more pipework added…

P1100058 P1100059

and have been working on 143 to make her more like the real one – oil tank in bunker, steam pipe covers, copper not black piping, handrails finishing half way across the smokebox etc.  There are however a couple of serious differences which will not be able to be sorted before expoNG.  For example the whistle, top feed, steam turret and safety valves are all (yes ALL) in the wrong place on the boiler.  Whoever made this I suspect has soldered them on and thus removal to their correct positions would be a major job, necessitating repainting and a whole load of re-piping.  Too much before expoNG – sorry to all crazy rivet counters!

P1100060 P1100061

A number of carriages have also been painted, including the bugs which are now ivory inside with red cushions and people are about to be added inside too.

Monday, September 20, 2010

Narrow Planet

4mm_ngg16

Custom nameplates in 009, 7mm or even 16mm -  http://www.narrowplanet.co.uk/ – now here are proper NGG16 nameplates – far and away better than the poor generic plates included in the backwoods kits.

Do have a look and give Steve an email/call – top guy, top service!

Carriage painting

P1100053 P1100052
Some more painting of carriages today – the bugs are looking good with the green/red done and the interiors in wood colour… 117 has progressed from primer, right through to red/ivory with black ends and the Pickering I built is nopw grey with black details.  The other two carriages are refurbs from the late Ben Fisher’s collection – the NWNGR workmens carr, now with interior fitted and another Pickering brake in green.

Saturday, September 18, 2010

A session

P1100049 P1100050 P1100051

Bit of a session tonight….  Bikes in bike wagons finished off, loads added for other B wagons and Gelert got a coat of matt black and red (why does red cover so poorly?  gonna need about 8 coats at this rate!).  The 66 is Thomas’, in the works for repairs.

I also started drilling out the holes for handrails on the WHR saloons – what a job that’s going to be!  Successfully did about 20 and then gave up for the night.

Mega update

Spent another day painting at Dad's.  Progress was made on many fronts.  Here's where things are up to:

Castell Caernarfon has had its plates added and a few other titbits...


P1100021 P1100022
P1100023 P1100024

But most of the work since the last update has been on 138... with much piping added, mudhole door covers replicated by using the lenses from small red LEDs(!), washout plugs installed etc etc

 P1100026  P1100028

The tanks are done and were primed just after this shot was taken:

P1100029

The Romanian carriage 2060 has come on massively with lots of extra details added by Dad's steady hand - silver around the windows, red around the doors etc.

P1100027P1100030

Other things sprayed in this session included:
Vale of Ffestiniog - two coats of the darker green (BR sherwood)
Upnor Castle - primer plus a base of green
carriages 24 and 25 in maroon
Col Stephens' green for 3 bugs and carriage 23 (red ends masked off)
Merddin's roof in primer
4 cycle stands for the bike wagons in grey primer
Gelert in primer and then rover midnight blue courtesy of halfords(!)
FR carriage 117 in primer (I noticed this car on the WHR during superpower - how had I missed this one being transferred?)

P1100032 P1100033 P1100034

Finally Dad and I spent ages (Dad for considerably longer whilst I played tennis with my brother) sorting out the red lines on all the WHR carrs so that they can be finally glazed.  Carr 22 was glazed as a test for the glue - GS hypo cement works perfectly!

Wednesday, September 15, 2010

Yard board wiring done

Wiring is done (save for the LED point indicator which I can’t do as I lent Dad all my LEDs!).  To save time, I checked the polarity with croc clips before soldering on, saving any resoldering later!  I really do like tortoises as they are so easy to setup and can be tweaked easily too.  The only problem with them is their depth, which exceeds that of my baseboard framework.  So, to avoid damage to the bottom of the tortoises, I made up 4 little pads which will hit the ground before the tortoise does, thus saving them.  These are being glued/nailed in place as per the image below…  They will be invisible on the finished layout as the curtain covers them.

P1100018

Lunchtime wiring update

It’s just about lunchtime and I’m pleased to report that all 4 tortoises are nearing completion.  1 has been tested, and despite the frog polarity being wrong, works perfectly.  [why is it always the case that you wire them up the wrong way round??].

The other 3 have had their inputs from the lenz accy decoder added, rectified by diodes.  These have been tested and also work fine.  Now it just remains to sort out the frog polarity feeds and on one of the motors, the LED point indicator.

If you’re wondering why I’m modelling today, this is because I am currently on gardening leave having resigned from my job yesterday.  It’s yet to be confirmed, but I may possibly have 3 months of this – plenty of modelling time!

Tortoises installed

painting of track is nearly complete and so the tortoises have been screwed in under the baseboard. wiring will commence today.

P1100014 P1100015

In other news I am building the cycle stands for the B wagon (bike wagon) from some evergreen strip and have already sourced some bikes.

P1100016

Monday, September 13, 2010

Superpower!

Spent two nights camping for superpower this weekend, here are a few highlights:

I camped at Llyn Cwellyn, here’s the view when I opened the tent in the morning!

P1090983

87 and 138 on usual service trains (but with a difference!):

DSC03541 DSC03633

plus visitors Taliesin (minus coal rails!) and Lyd:

DSC03713 DSC03718

some great photographic opportunities, especially on the Sunday:

 DSC03731 DSC03897 DSC03927 DSC03944 DSC03958 DSC03969DSC04088

Here’s the view from the Glanrafon slate tips:

DSC03778 DSC03793DSC03813 DSC03817 DSC03839DSC03766

I walked miles!  Up to the top of Bryn Du from Bron Hebog (the farm) is a memorable climb!

DSC04016 DSC03804DSC03999 DSC04015  DSC04026 DSC04038 DSC04046

and specials: long trains, double headers, construction stock in use etc etc:

DSC04073 DSC04079 DSC04080

and I even got to see a bit of the ‘other side’ and get some shots of Gelert too:

DSC04114 P1090974  P1100009

and of course plenty of opportunity to get up close and personal with various items of rolling stock to check out details and liveries, but I won’t bore you with that on here (yet).
