A 009 narrow gauge model railway of Rhyd Ddu. The project was born in late 2005. This blog describes the planning, woodwork, track laying, wiring, DCC, scenery, locomotive and rolling stock. The layout is an impression of the Welsh Highland Railway (WHR) Rhyd Ddu station and Tro Ffridd reverse curves. 009 is 4mm scale (OO) narrow gauge using N gauge track.
Monday, July 28, 2008
Ready for wiring
One of the 'cool' things about this setup, is that my DCC controller (when I buy it) will have route setting capability - ie it can change all the points to set the layout for a certain route in one button press, niot only that but you can set a delay between the points actually changing, allowing for a kind of cascade effect - nice!).
Colin
Sunday, July 27, 2008
Cover your tracks

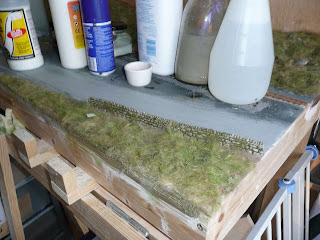

The first section of wall has been detailed around the lower edges so that it blends in with the landscape better (see 2 shots below of both sides), also note the new siding (head shunt).
But the main progress has been with ballasting, which is largely now complete except for the points (thought required to avoid ballast gumming up them).
At Ffridd Isaf, the two large bushes that partially hide the wall have been placed.
We visited Crich tramway museum on Sunday and this exhibit was rather relevant I thought!
This is where the carriage is at - ends now satin black and all masking tape off. A few areas have leaked, but should be easy to touch up. Now it needs a roof, glazing and internal detail...
Colin
Saturday, July 26, 2008
Seeing red
The three carriages in primer are No. 1000 (the first carriage I ever soldered together [it shows]), 103 (the buffet car that once was) and 116 (which has just emerged from Boston Lodge with totally different windows). Why prime these three - easy practice and it doesn't matter if I get it wrong! Look out for 103 and 116 on ebay soon!
Anyway, the carriage behind the primed ones is the subject of this post. It was primed by Dad and then I selected a halfords car paint (Ford Ivory) for the cream windows etc. This was sprayed all over. Then we masked off the parts that were to stay ivory and sprayed the carriage with BR crimson from a railmatch enamel can. Except that the crimson came out buffer beam red! Disaster! Also, being enamel we couldn't then spray some Nissan red (closest colour later found at halfords) on top. On a trip to the model shop, we found a railmatch pot of the same colour, and found it to be fine. So this was purchased and two coats were painted on by Dad. Tomorrow I shall remove the masking tape (tamiya) and fingers crossed, we should be close to a painted carriage (well the ends need to be black yet, but that should be easy).
Once I've got one done, I then hope to open up a kind of batch working - getting 5 or 6 into primer, then ivory etc... watch this space.
Colin
What's that coming over the hill...is it a monster update?
Below are some images, which will help describe what I've done. The flash once again lightens a lot of the colours - the ballast is grey, not white as you might believe in some of these shots, sorry about that...
The second half of Ffridd Isaf has had its coat of LNER Doncaster Green (thinned to about 1:16 and some matt yellow added). Also the ballast has been extended around to the loop point. It needs tidying up at the edges, which I shall do when I add the weathering - a thin wash of dark grey in the 2 foot for one) - it's too 'clean' at the moment.
The main station area has also been greened, the platform has had its initial coat of paint and is now fixed down, to allow ballasting up to the platform edge to commence on the side nearest the camera.
There is much discussion in dispatches that the head shunt in the yard will be extended (towards Pitt's Head), now that the container for the little blue diesel 'Dolgarrog' has gone. Indeed the sub base already exists, so I have taken a flyer on this one and extended it now, at the risk that it might not happen! This also had the benefit that I could remove the (now unnecessary as I'm going for DCC) gaps added for isolation on this siding, which had caused me some concern about the reliability of running as they were mighty close to the point. One new feed will need to be added (using the holes already drilled), and the rails painted, but otherwise this is now done (cork underlay extended, track cut and attached with insulated joiners and track plus ballast glued down.
I am now pretty happy with the Pitt's Head road after about the 5th (!) attempt to get it right - mid grey emulsion paint plus talcum powder is about right for an old tarmac surface (better to underplay the colours I reckon!)
Ballasting continued in the yard area, weathering to come.
On Ffridd Isaf, the considerable work has involved extra detailing of the grass with different shades of static grass etc, painting of the stream bridge (wall) by Dad (top artist and good at mixing colours etc http://www.fclea.co.uk/) and further coats of realistic water for the stream plus more slate bits added to the path.

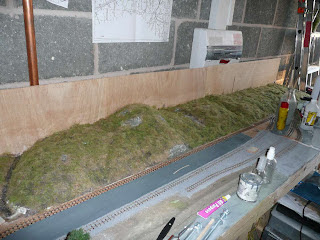

another overview of the Ffridd Isaf board. It's getting there!
Colin
Tuesday, July 15, 2008
Graduation
Dad had some BR Crimson in stock - is this close enough to FR/WHR 'Mercedes' Red?
We also visited Toddington.
For the North Gloucestershire narrow gauge railway. This has recently been extended and we hadn't been on the extra bit. You stop off halfway for a shed and signal box tour. Here well tank 'Justine' is on display.
We had a diesel though. The railway suffers from very little in the way of views - yes you can sort of see the mainline diesels, but there's too much greenery around to see much else. The cafe was unusually disappointing, and short lines like this also suffer in the scoring due to their timetable, number of locos in steam and carriages. Overall, the railway scored 33%, placing it pretty much on par with the Golden Valley at Butterley and the Amerton railway and I suppose that kind of fits as they are similar lines.
Friday, July 11, 2008
A quick update
- Lightened the Ffridd Isaf rocks with a white flood wash, which has been very effective in improving the colouring.
- Finished off the rear of the stream bridge with filler on the edges of the walling.
- Finished the application of hairy carpet felt over all boards. A few areas may need some extra where gaps appear after trimming, but that is phase 2.
- Smashed to pieces bits of slate to create smaller bits (scale size)
- Taken up the disappointing slate path (which still hadn't dried underneath after about a month!), this has left a nice base though and a new method for the path is being considered using the above mentioned bits of slate
- Re coloured the Pitts Head road a lighter grey with talcum powder to add texture (I promise this is the last time I'm going to repaint that!).
- Added further small talus around the rocks, clogging up my spray bottle in doing so.
Colin
The world's greatest model shop?
Thursday, July 10, 2008
watching paint dry
Knicker ripping rock has been added (local legend apparently) and you can see the carpet felt, plus the new plywood edge to this board too below.
Further along the layout, miles of carpet felt is visible.
and further attempts are being made at Larch modelling... using woodland scenics tree kits, I cut out most of the branches, leaving just single branches (they were split into threes) at intervals, then cut to pieces off a ridiculous model of a larch bought at the World's greatest model shop (more on that tomorrow).
Tonight I have literally been watching paint dry (assisted by a hairdryer) whilst I sprayed these white metal trees, first with grey cellulose primer and I then added brown and a hint of green with spray enamels from B+Q (see below).
Then I'm going to glue on the larch branches I removed.... more soon.
Colin
Monday, July 07, 2008
Norfolk break
First up is the Wells and Walsingham Railway (10 1/4 inch gauge and apparently the longest such railway in the world). Using my usual scoring system this scored 39%, placing it slightly better than the Amerton Railway but not quite as good as the Corris. The railway suffers from a small loco stud, terrible facilities and a terminus at Walsingham some distance from the village and indeed the car park. The Garratt was nice though! Below is also a moderate attempt at a Leek and Manifold carriage...
At Bressingham we had a great day out with 3 railways operating. Two miniatures and a 2 foot line too. All set is gorgeous gardens - fantastic. Overall it scored 51%, let down only by the lack of intermediate attractors, views etc that such a self contained site brings.
