A 009 narrow gauge model railway of Rhyd Ddu. The project was born in late 2005. This blog describes the planning, woodwork, track laying, wiring, DCC, scenery, locomotive and rolling stock. The layout is an impression of the Welsh Highland Railway (WHR) Rhyd Ddu station and Tro Ffridd reverse curves. 009 is 4mm scale (OO) narrow gauge using N gauge track.
Wednesday, September 29, 2021
This blog has moved...
Monday, October 24, 2011
More carriages!
And more go into the line for finishing...

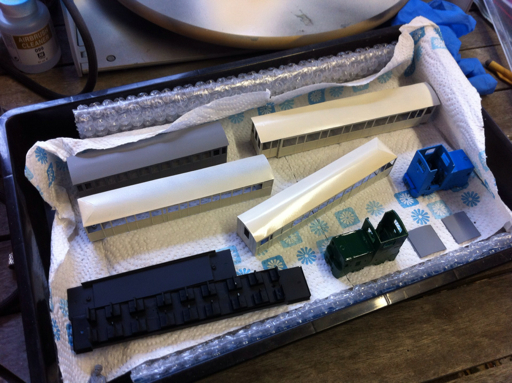

Here 24 in primer plus 2043/100/102 in ivory after priming.
There's also two O14 diesels being painted green and blue.
Saturday, October 22, 2011
Degrease lightning

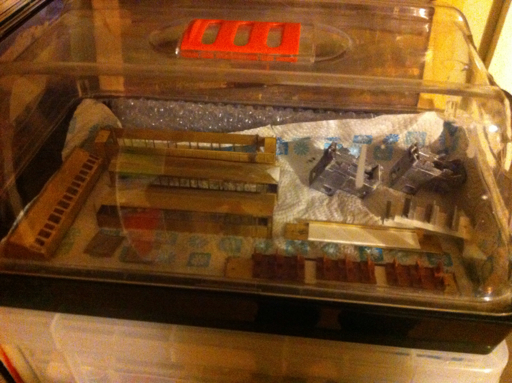

Tonight the bodies of 100 and 102 (the chassis await the interiors being built) plus the full body/chassis combo of 24 and 2043 were cleaned and degreased ready for primer. Alongside them I'm painting two O14 kb scale diesels for my other layout.
Friday, October 14, 2011
You spin me right round
1) the so-called 'question mark' board is a very tight fit through the new loft hatch, requiring the removal of the hatch hinges and retaining mechanism to get it through (not ideal). This is beacuse it is 6 inches wider than all the other boards.
2) the layout as displayed at expoNG does not fit in the loft because of some fiendishly placed chimney breasts, roof ties etc
So, this got me thinking, how could I remove the need for the wider question mark board and also reduce the total footprint of the layout? It is particularly difficult as I want to retain the 'round and round' setup and a single (central) hidden sidings. Indeed the Ffridd Isaf curves board also means that the line is headed away from the station in a difficult direction to solve without the need for even more space.
Well one idea (the leading idea of many) is presented above. This is quite radical (!) but could work really well I think.
The idea is to place the layout and hidden sidings back to back, removing the need for an operating well. In order to do that successfully (here's the radical bit) I will change the viewers' view of the layout - instead of looking at the station from the car park side, you'll now view it from the hills! As you can see above this delivers a close to 40% reduction in the total layout footprint, but (bizarrely) requires an EXTRA board (3 ft x 2ft)!
It would allow the fiendish tie in my loft to sit behind the backscene and thus become inobtrusive (although it would be in the way if (when) boards A and B are made scenic.
I actuallly think there is something quite fun about having the layout viewed from the other side... it's like looking at the station from the hills and it means trains disappear from view and reappear in an interesting way.
So, in order to create this I need to cut back the current backscene to just retain the hillsides etc, build a new board and install a new backscene on the other side. Board H (the small triangle) may not now be required, it might remain, we'll see.
I can now make plans for what I shall model on boards A and B too - something north of Rhyd Ddu...ummm
Thursday, October 13, 2011
Model rail surprise
Today I picked up model rail magazine (nov issue) as for once it had some narrow gauge content. In fact I haven't bought a modelling mag for a while now. Well there's quite a few innovations that have appeared. Highlights are:
- The new noch laser cut plant range which looks great
- The hex frog juicer is gonna save loads of wiring! For DCC layouts it automatically switches the frog polarities for you without the need for accessory switches. Well cool.
- gjhplant who have a safe non acid flux for soldering without the fumes. Might be worth a try.
- A thought provoking article about building a portable all in one 'command station' and test track
- I noticed that a company called foresight LED do some useful magnifying glasses which have LED lighting too.
- A great article about the 16mm Fen End Pit (ng)
- and useful tips on brush painting and fillers
Must buy it more often!
Thursday, October 06, 2011
Upstairs downstairs

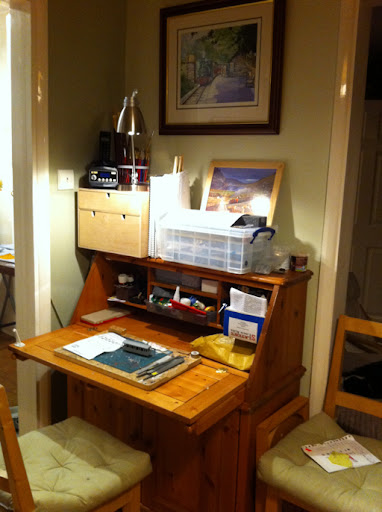

I have now successfully moved downstairs and here is a shot of my new modelling bureau in action. The WHHR's Bro Madog Eisteddfod coach has been put together tonight.
Thursday, September 29, 2011
Bearing up

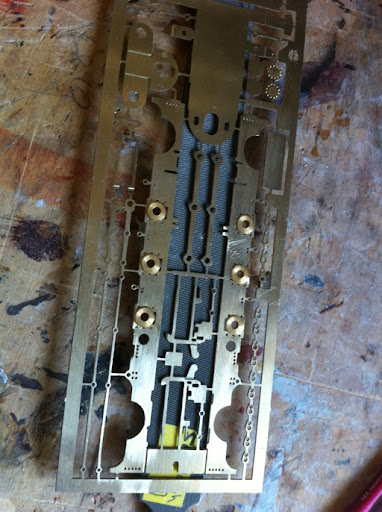

Latest progress on the mystery loco. Half moon shapes removed to assist pony truck swivel and holes for bearings reamed out ready to take the bearings.
Wednesday, September 28, 2011
Paternity leave modelling
Baby and mum asleep so modelling can be done.

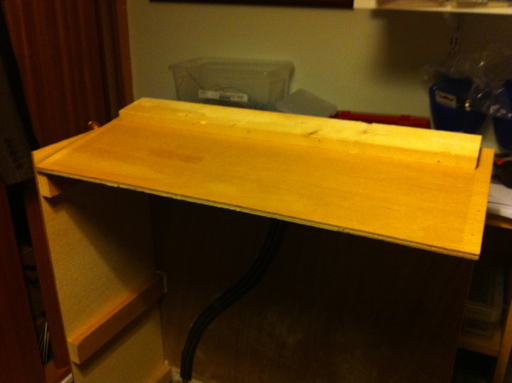

Firstly I installed the new section on the question mark board to mirror the extra foot added to the station approach. I have decided to make this hinged so that access to the layout can be attempted by thin people without requiring a duck under (with the inevitable bang of heads!). A simple mating piece was screwed onto the next board to meet this hinged section. A brass bolt (or 2) will secure it in place.

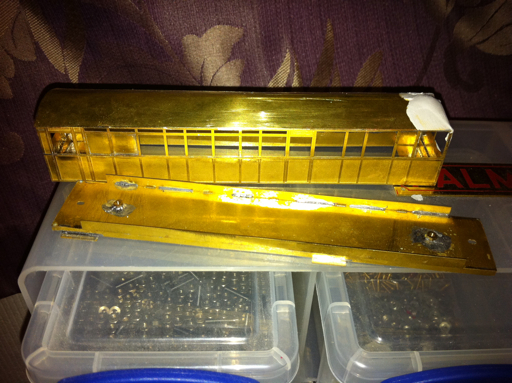

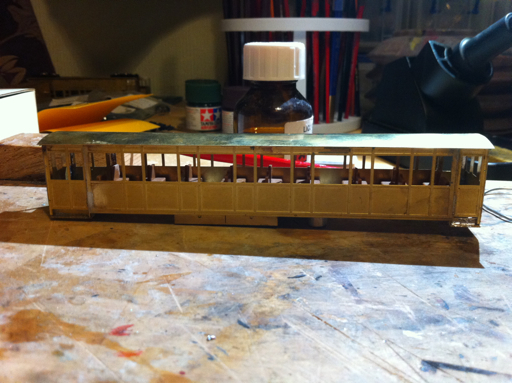

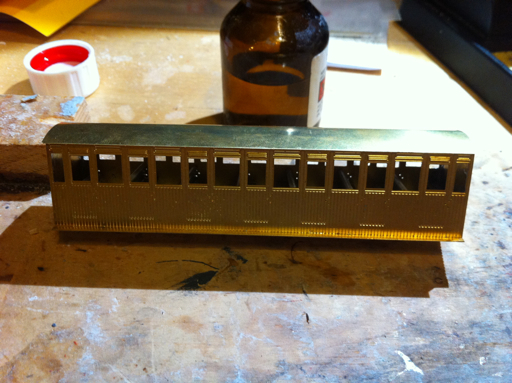

I then soldered on the roofs for carrs 24, 2043 and 102. 102 required its roof cutting from sheet brass first and also had filler dropped in to the domed end which will be shaped once dry.

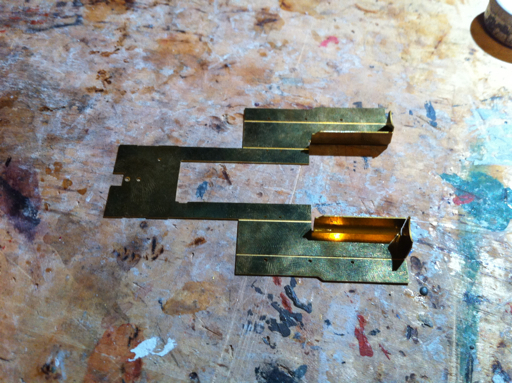

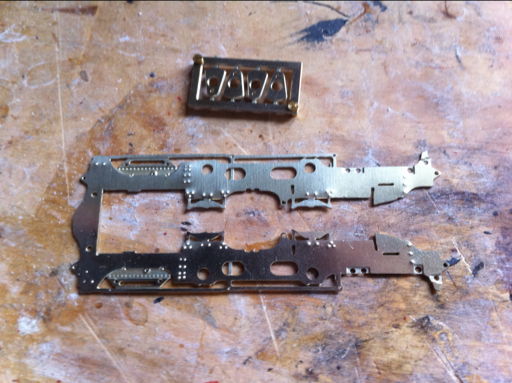

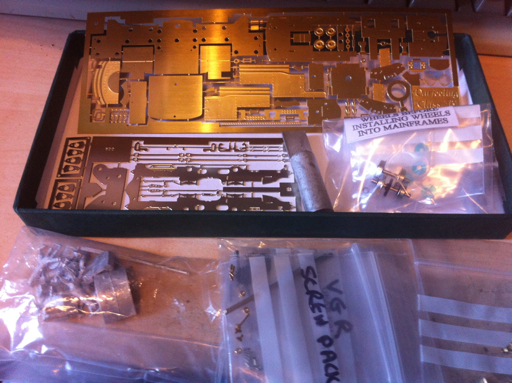

Finally I removed a few pieces from frets, cleaned them up and created a radiused fold in a loco kit - any guesses which one?
Monday, September 26, 2011
Riveting
Have spent quite a while studying the backwoods B class instructions. A few observations:
- the method of attaching cranks to the axles is far superior - the plastic friction fit pieces will avoid the wheel centre melting problem!
- in fact the wheels come (along with a gear wheel) installed on their axles
- the kit uses a live body arrangement with insulated wheels one side. This will require some careful work to isolate the motor from the body for DCC.
- the method for clamping the cranks prior to lamination usong 12BA bolts on the frets is very clever
- the kit looks like a perfect one for the novice
I've also been studying the differences between the kit and the B class being modelled - no. 19. These are:
- tender!
- no lamp on roof and whistle very different, not on roof but with hole in roof for steam to escape
- a different front lamp
- a taller less wide toolbox
- no coal rails
- extra feed to bottom of dome
- extra pipes on smokebox
- different patterns of rivets on body side (but I can't be bothered to alter these)
- specific numberplates etc (being etched for me by narrow planet)
Have started by doing all the riveting (using Dad's special nails plus hammer method) and cutting out the frames.
Tuesday, September 20, 2011
Sparshoff
Monday, September 19, 2011
Gee whizz, Gee Dee
Today I visited Gee Dee models as I was in Nottingham for business. It's been a while since I've been in but it remains an excellent shop. I made the following purchases:
- a new mek pak bottle.
- 4 buffer stops to finish off the hidden sidings board
- and this can of paint. Now why would I need that?
Sunday, September 11, 2011
Joining up
Tonight all the hidden sidings feeds were attached to the DCC bus bars and then the continuity tested with the help of a DC controller and a zillertalbahn diesel (chosen as my DC test loco). All worked well.
I also cut a block of acrylic sheet to become the base of the improved water tower
Monday, September 05, 2011
Nice pair!

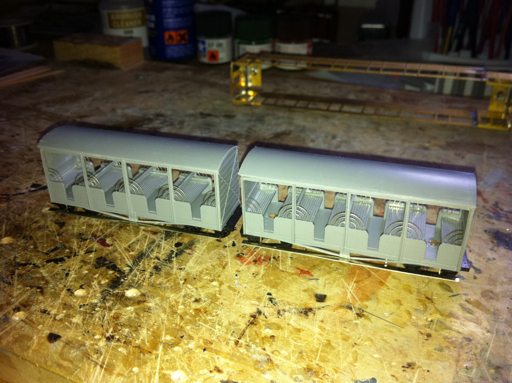

Here are the hudsons with footboards and seats fitted. The roofs are not yet fixed to aid painting/the addition of people.
Now these will sit on the 'nearly' pile waiting for the etched mini doors promised to me by narrow planet.
Friday, September 02, 2011
Nailed
All the hidden sidings track is now nailed down and wire has been poked through ready for feeds to be soldered on this weekend.
Sunday, August 28, 2011
Hidden away

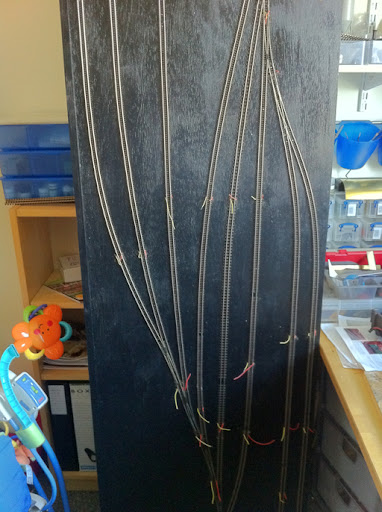

The track for the hidden sidings has been laid out, cut and joined. Track pins need to be added yet (it was too late to start hammering last night!).
In other news the baby stuff from the loft has been brought down giving me a full loft to be able to measure ready for erecting Rhyd ddu up there.
Monday, August 15, 2011
Toast is served

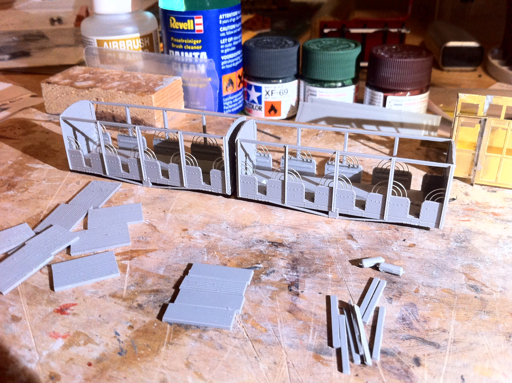

And here are the two bodies made up - guard rails on, sides and floor fixed to ends. Next it's seating...
Friday, August 12, 2011
Racking them up

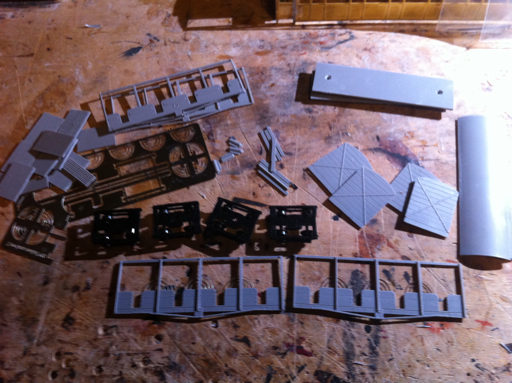

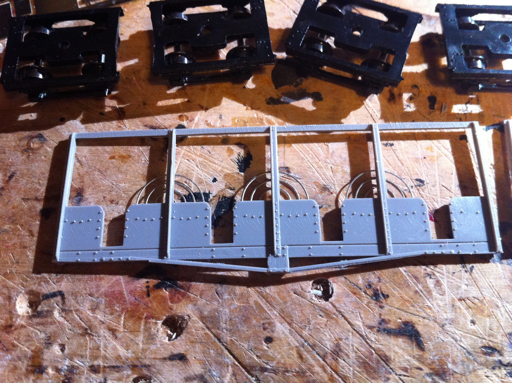

Today the first ever 009 society kit was delivered to my door. In fact two were. The kit is for the Hudson toast rack carriages (rainmakers). One of these runs in the WHHR heritage train in maroon and another alongside two more modern versions on the FR in dark green.
Tonight I made a good start on these. All the plastic parts were cut out and cleaned up (it's a new kit so the castings were crisp) and made a start glueing on the curved side guards. Good kit so far.
Also around my work bench at the moment are carrs 100 (which recently had it's roof added), 14, 24 and 2043. The latter two have had their roofs cut out of brass and curved recently.

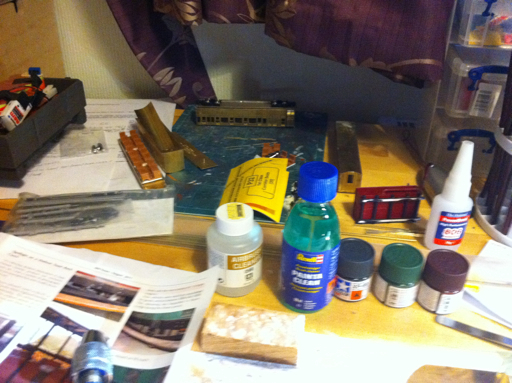

Local to our London office is a superb model shop and I invested recently in some more tamiya paints and cleaning solution for both brushes and airbrushed.
Thursday, August 11, 2011
Saturday, August 06, 2011
Hatching a plan

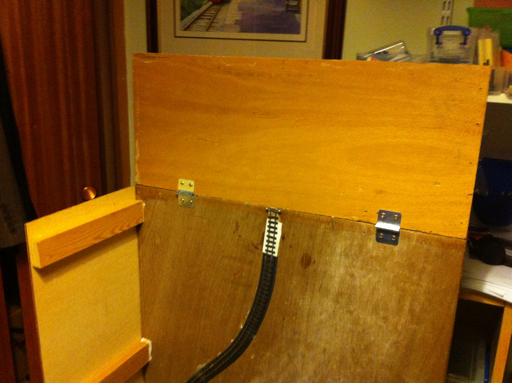

The loft hatch project moved forward today. The previous hatch was removed, the ceiling plasterboard cut out with a jigsaw and a support (not a joist!) removed.
One board has now made it into the loft proving the new hole is big enough.
Tomorrow I will replace the trim and construct a new hatch door.
